HAL-HPC600

HAL-HPC600
HAL-HPC600_1

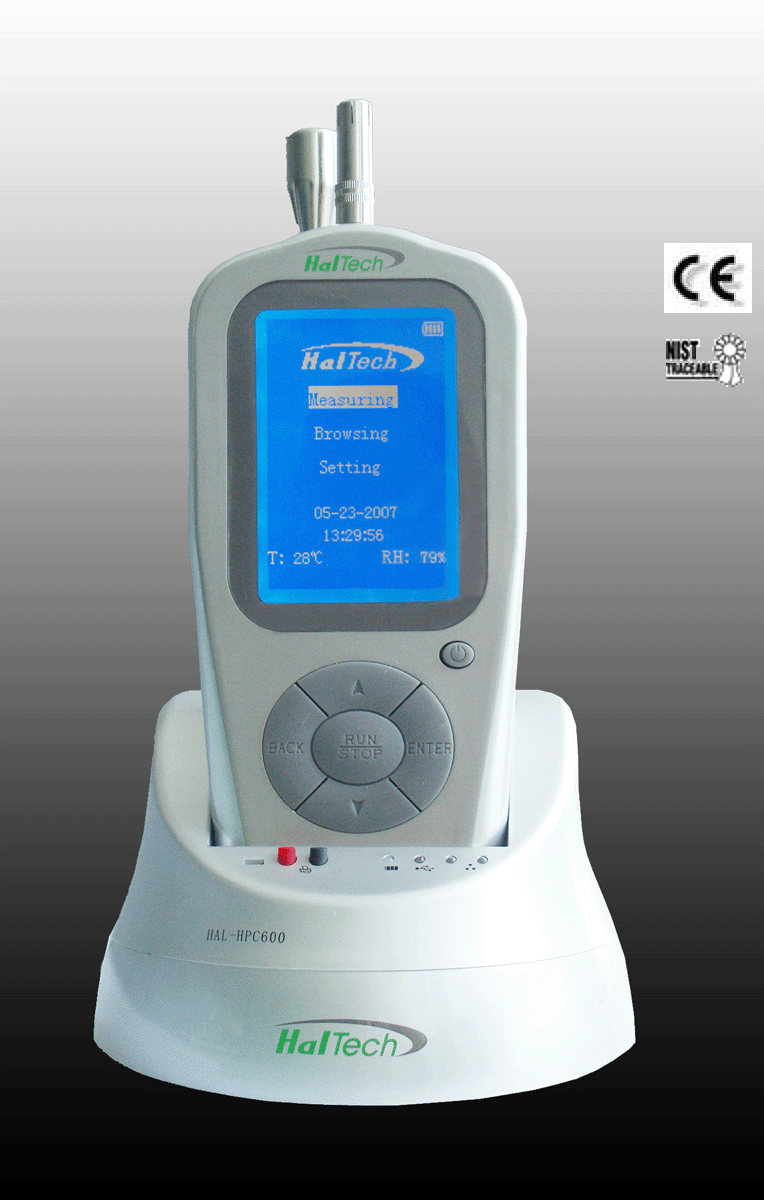

HAL-HPC600 6-channel handheld laser particle counter is the world's first of its kind hybrid handheld optical particle counter. The instrument is a truly breakthrough of new generation of particle counters that combines the traditional handheld instruments with functionalities of portable instruments for ultra-clean environment and indoor air quality applications.

Product Data Sheet: SKU: HAL-HPC600. Category: . Tags: , , , , , , .

Product Description

  • All 6 channels continuously adjustable with 0.1 micron step resolution

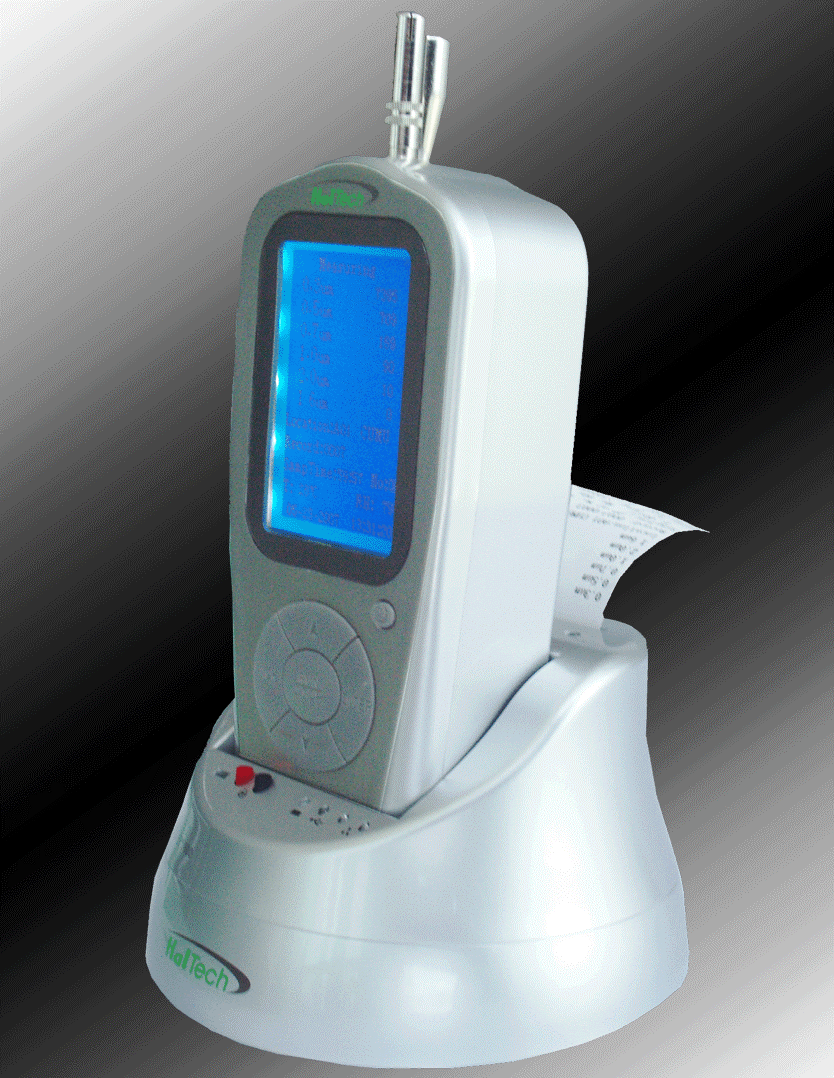

  • Combine both handheld and portable functionalities with a build-in printer (patented)
  • RJ45 interfaces enable for remote sampling over internet
  • Remote sampling through a high-speed USB connection
  • USB interface for data downloading (support both Excel and CSV formats)
  • Up to 6000 internal data memory
  • Automatic sampling and excess-count-limit warning
  • External high precision, digital, external temperature and humidity sensors (optional)
  • Durable key pads with a large blue LCD display
  • Support both English and metric systems
  • CE certified and NIST-traceable calibration
  • MADE IN USA

Additional Information

Weight 2 lbs
Dimensions 3.66 x 1.81 x 73.28 in
Size Range

0.3 µm~ 25 µm

Channel Sizes

All six channels can be configurable by users

Light Source

Laser diode (more than 100,000 hours MTBF)

Coincidence Loss

<5% @70,000 particles/Liter

Flow Rate

2.83 Liter/min (0.1cfm)

Counting Efficiency

50±20%@0.3µm; 100±10%@0.5µm

Test Standard

JIS-B-9921 (1997), ASTM-F649-01, ASTM-F328-98 (NIST traceable)

Sampling Time

1 sec ~ 59 min and 59sec (User defined)

Sampling Count

1 ~ 99 (User defined)

Count Limit Warning

FED STD 209E (Class 1 ~ 100,000) or ISO 14644-1 (Class 2 ~ 9)

Measurement

Single/Repeat/Average

Error Indication

Count limit, loss of laser power, out of flow calibration (>±5%), insufficient battery

Communication Speed

USB —12Mbps, RJ45—100Mbps, RS-232—9600bps

Power

Li-ion polymer Battery (7.4V/2800mAH) or AC adapter (AC input: 100 ~ 240V, DC output: 9V/1.5A)

Max. Operating Time

continue operation > 5 hours with Li-ion polymer battery

Environmental Condition

Operating: 0~ 50°C, <90%RH, Storage: -20~ +50°C, <90%RH

Download

Product Data Sheet: HAL-HPC600 Product Data Sheet
