The MCSA-16K Pocket Multi-Channel Signal Analyzer is a unique test and measurement instrument. It can be useful for applications in electronic, nuclear and optical spectral signal analyzing. The MCSA-16K is specially designed for application of particle pulse height analysis (PHA) and instrument calibration.
Product Data Sheet: MCSA-16K Multichannel Analyzer
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 x 3.3 x 1.4 in |
| Channels | Software selections: 16K, 8K, 4K, 2K, 1K, 512, 256 |
| Response | Rise time < 300ns, ADC conversion time < 400ns |
| Pulse Detection Mode | Absolute Peak Mode: for pulse height counting and distribution First Peak Mode: for spectrum analysis |
| Max Count Of Single Channel | 4.29×10^9 (4 Bytes) |
| Input Signal Range | Amplitude: 0 ∼ 5 Volts and 0 ~ 2 Volts (Selectable) Impedance: >10 KΩ |
| Interface | USB 1.1 or later |

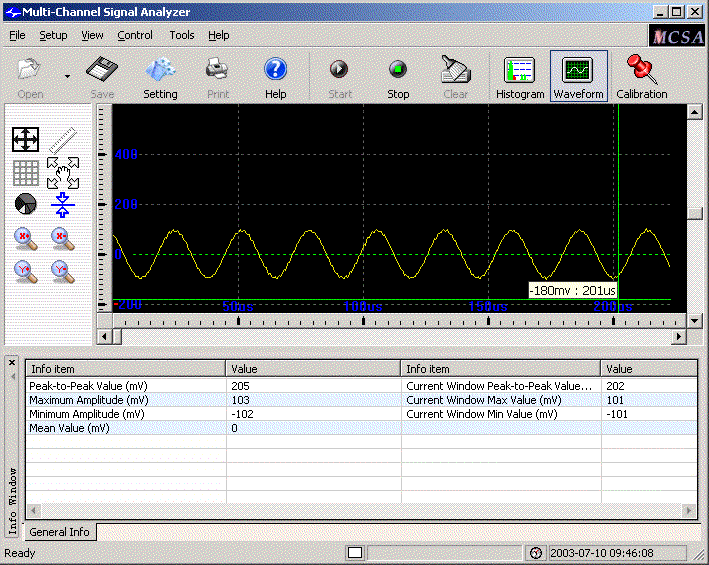

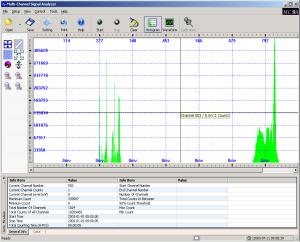

| Software | MCSA 2.0 (Windows 98/2000/ME/NT/XP) |
| Status Indications | Red LED on: Power on, Green LED flash: PMSA data acquisition |
| Operating/Storage Temp | 0 ∼ 70°C/-40 ∼ 85°C |
Product Data Sheet: MCSA-16K Multichannel Analyzer
