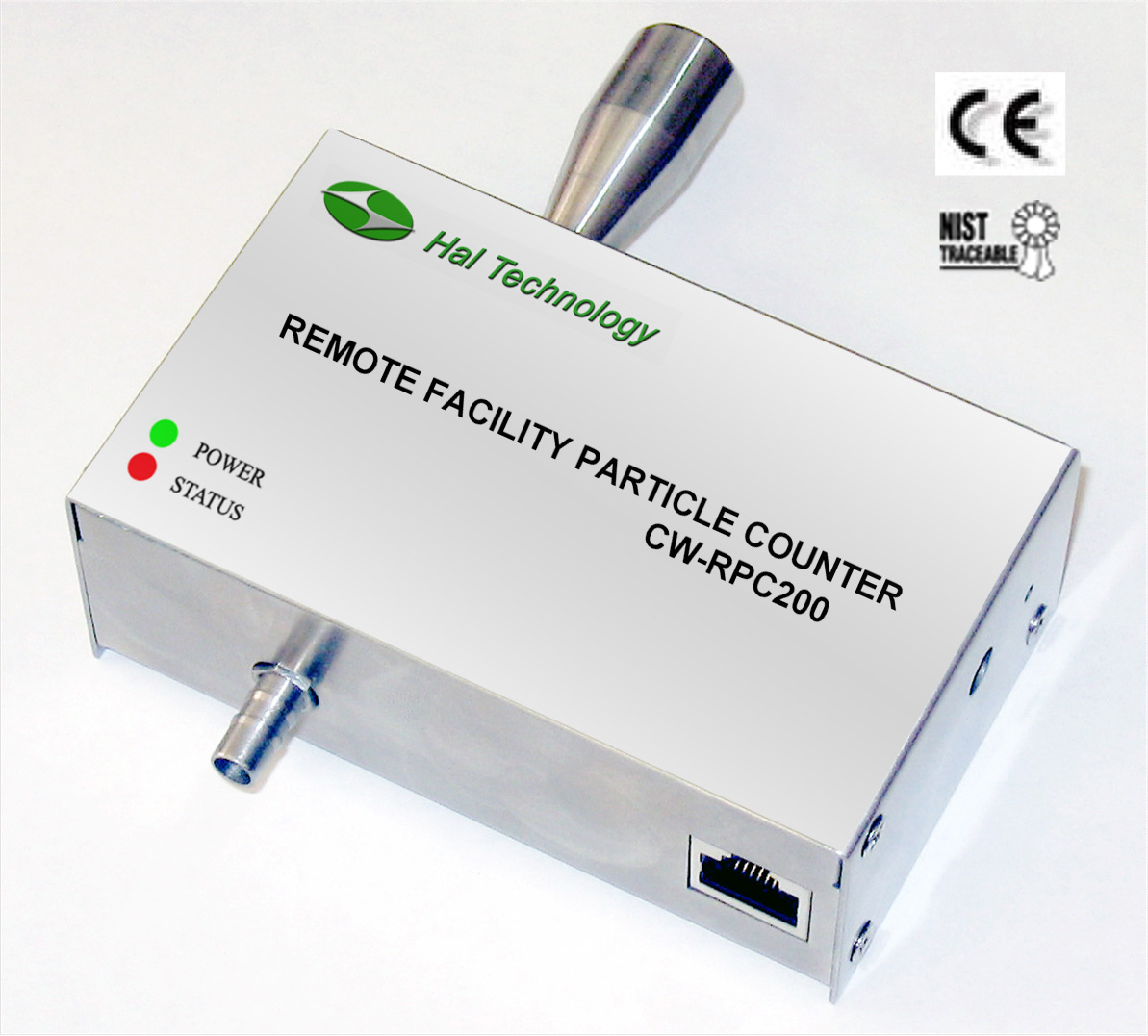

HAL-RPC200 (Power over Ethernet)


Intelligent multipoint remote facility monitoring system. It is useful in measuring particle concentrations in ultra-clean environments by its single particle counting ability and classification of a clean facility. The data collection and sampling time interval can be remotely carried out by a remote computer terminal. The system can sample 24/7 continuously and remotely monitor the status of the clean facility and give warning of an excess of count limit preset by the user. It is in compliance with international standards (JIS B9925:1997 and ISO14644-1) and has CE certification.

Product Data Sheet: HAL-RPC200 2-channel Remote Sensor_PoE

SKU: HAL-RPC200. Category: . Tags: , , .

Product Description

  • Simultaneously measure 2-channel particle distributions
  • Ethernet TCP/IP
  • PoE ready and auto power control
  • 7/24 continuous monitoring
  • Automatic sampling and excess-count-limit warning
  • Stainless housing
  • Dual power option
  • CE certified and NIST-traceable calibration

Additional Information

Weight 1 lbs
Dimensions 2.5 x 1.5 x 4.75 in
Particle Size

0.3, 0.5µm (User configurable)

Light Source

Laser Diode

Coincidence Loss

< 5% @ 2,000,000 particles per cubic feet

Flow Rate

2.83 Liter/min (0.1cfm)

Counting Efficiency

100±10% @ 0.5µm

Zero Count

< 1 count per 5 minutes

Calibration Standard

JIS-B-9921 (1997), ASTM-F649-01, ASTM-F328-98 (NIST traceable)

Warning For Excess Of Limit

Class 1-100,000 (FED209E) or 2-9 (ISO14464-1)



Error Indication

Excess of maximum count limit, laser degradation


RJ45 (TCP/IP, PoE ready)

Status Indication

Green: Power on and system ready, Red: System or communication errors


PoE or local AC adapter 6 ∼ 9VDC/100mA

Environmental Conditions

Operating: 5 ~ 50°C, < 90%RH, Storage: -20 ~ 65°C, < 90%RH

Standard Accessories

Kinetic probe, user manual, AC adapter, calibration certificate


Application software for facility monitoring system, router or PoE ready router.


Product Data Sheet: HAL-RPC200 2-channel Remote Sensor_PoE
